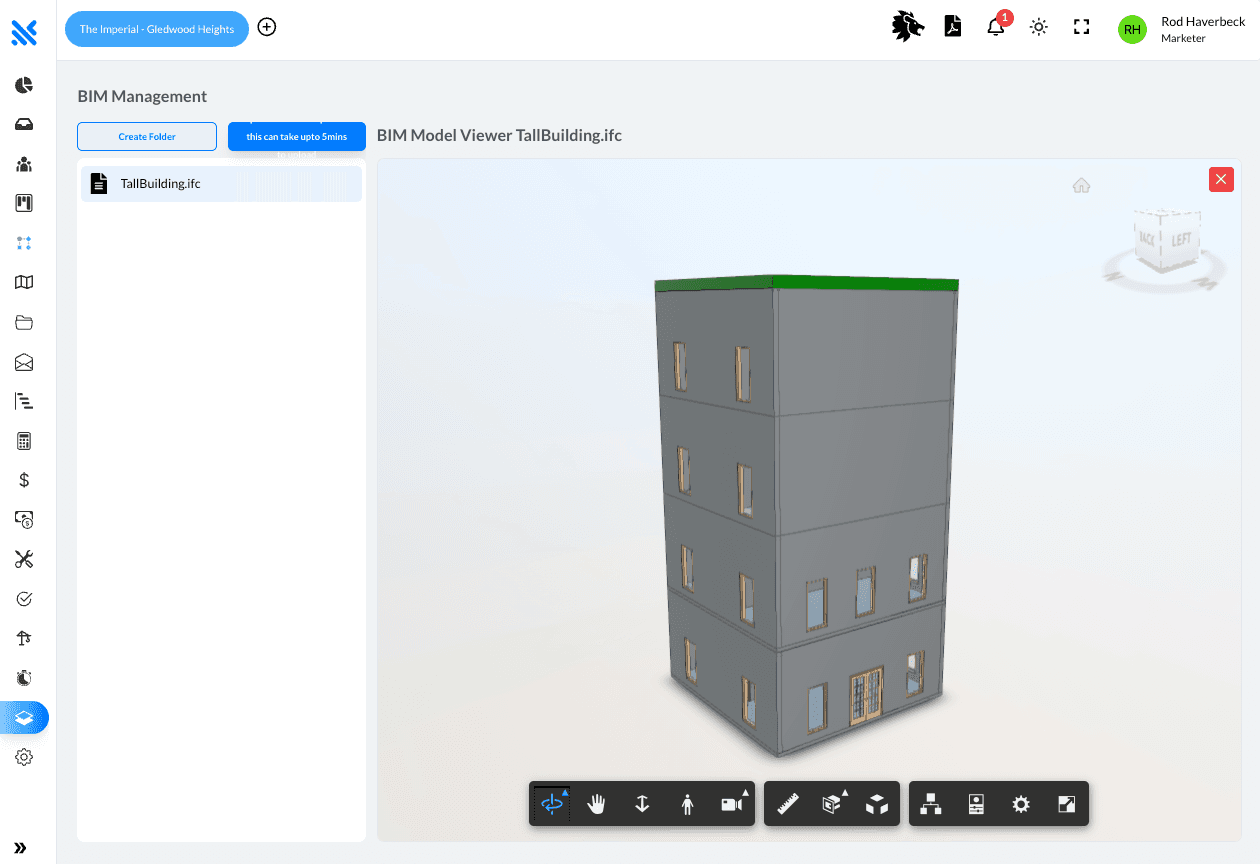

Drawings & BIM
Construction drawing
management and BIM
viewing on one platform
The current set of drawings, specifications and 3D models in one place, linked to the RFIs and submittals raised against them. Every worker on site sees the same version.

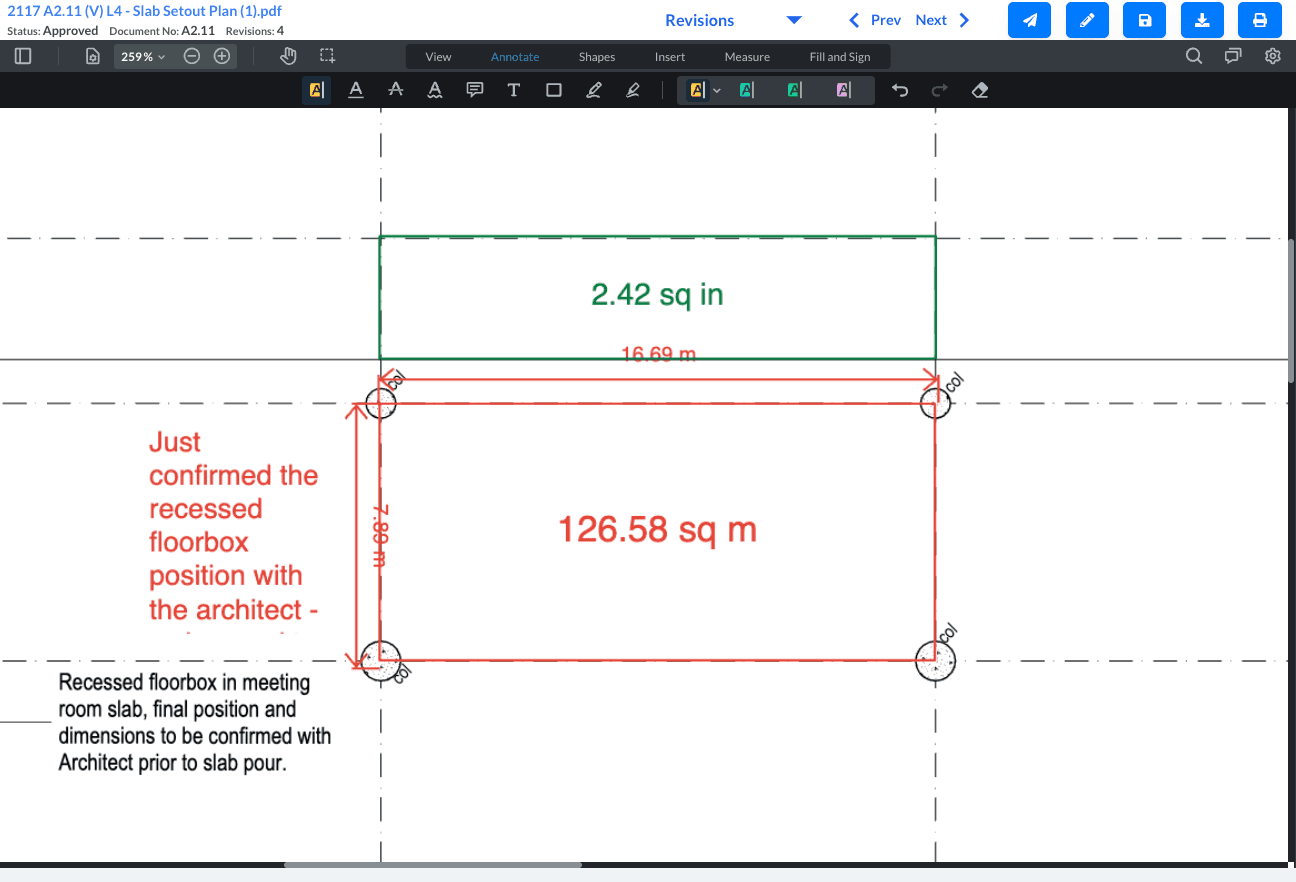

Mark up without leaving

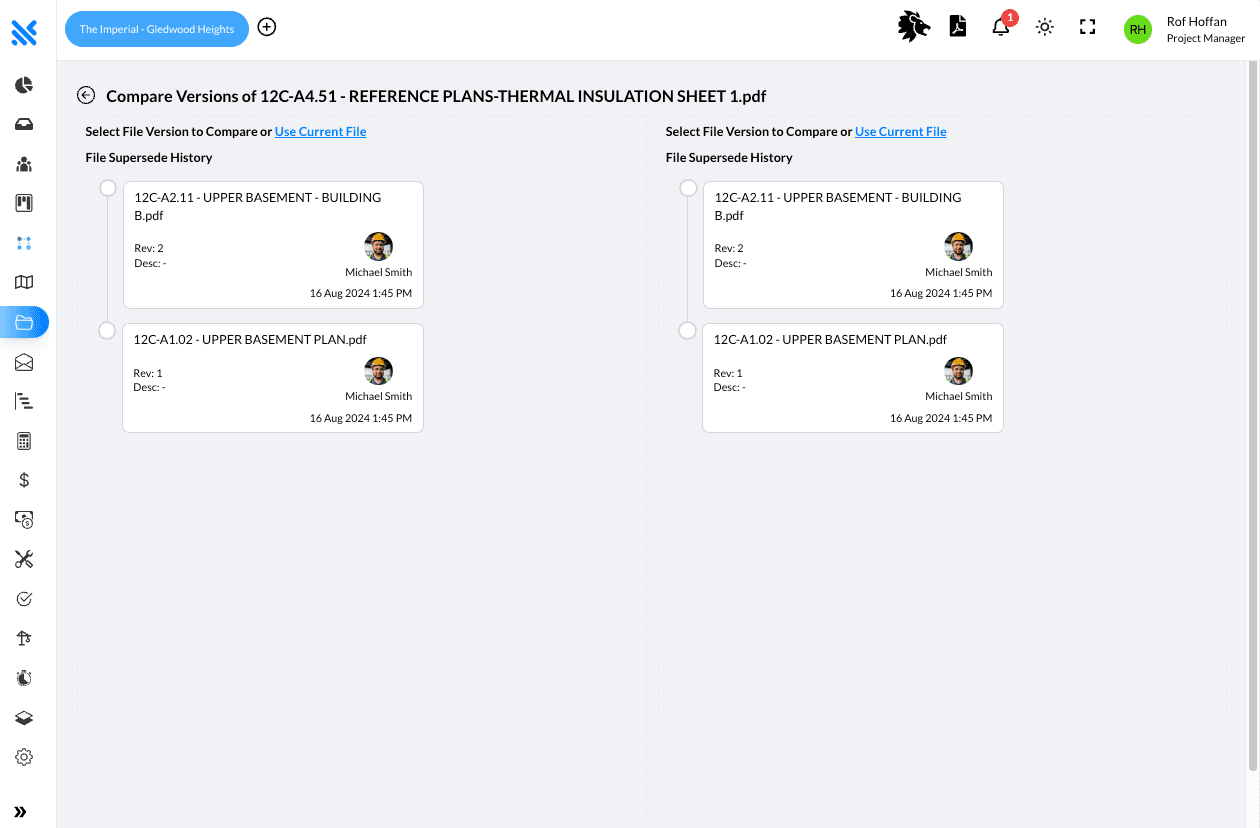

Compare revisions, mark up and share feedback directly on the sheet.
Synced straight from Autodesk
Model and drawing updates flow into Plexa automatically, so nothing falls out of date.
Every drawing, one click away
No more digging through folders or asking who has the latest set.
THE PROBLEM
The paper drawing on site is Rev 4.
The current revision is Rev 6.
Traditional drawing management leaves the live set in a folder somewhere, the printed set floating between site cribs, and the emailed PDFs on foremen’s phones. Rev 4 gets built. Rev 6 was the answer.
Plexa keeps one live set, distributed automatically, viewable on any device, with the RFIs and submittals for each sheet one click away.
The paper drawing set vs the live drawing set
On the left, the site trestle with three revisions stacked, one marked up. On the right, the same drawing live on a foreman's iPad, with every RFI and submittal linked to the sheet.
FAQ
Quick answers: everything you need to know about drawings and BIM in Plexa
What is BIM?
What is BIM used for?
How is BIM transforming construction?
Can Plexa BIM be used across the entire lifecycle, from preconstruction to operations?
Does the BIM viewer require an Autodesk licence?
What drawing file formats does Plexa support?
